2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment

Hunan Teila Heavy Industry Machinery Group Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment

Brand Name : ZOOMLION

Place of Origin : China

MOQ : 1

Price : USD60000 - USD140000 EXW

Payment Terms : L/C,T/T

Delivery Time : 5-8 working days

Packaging Details : Bulk Cargo Shipping

Lifting Capacity : 80,000 kg

Maximum Travel Speed : 75 km/h

Overall Dimensions (L×W×H) : 15,000×2,850×3,850 mm

Fuel Consumption (per 100 km) : 46 L

Slew Speed : 0-1.6 r/min

Contact Now

Key Features & Configurations

Category

Parameter

Details

Lifting Capacity

Maximum Rated Total Lifting Capacity

80,000 kg

Maximum Lifting Moment (Basic Boom)

3,116 kN·m

Maximum Lifting Moment (Longest Main Boom)

1,646 kN·m

Lifting Height

Maximum Lifting Height (Basic Boom)

13.7 m

Maximum Lifting Height (Main Boom)

48.8 m

Maximum Lifting Height (Jib - Option 1)

66.0 m

Maximum Lifting Height (Jib - Option 2)

75.0 m

Working Speed

Main Winch Speed (Single Rope)

130 m/min

Auxiliary Winch Speed (Single Rope)

110 m/min

Boom Elevation Time

62 s

Boom Extension Time

145 s

Slew Speed

0-1.6 r/min

Travel

Maximum Travel Speed

75 km/h

Maximum Gradeability

40%

Minimum Turning Diameter

≤24 m

Minimum Ground Clearance

280 mm

Fuel Consumption (per 100 km)

46 L

Mass

Curb Weight (Travel State)

50,000 kg

Vehicle Ready Mass

49,870 kg

Front Axle Load

24,000 kg

Rear Axle Load

26,000 kg

Dimensions

Overall Dimensions (L×W×H)

15,000×2,850×3,850 mm

Outrigger Longitudinal Distance

6.38 m

Outrigger Lateral Distance (Full Extension)

8.0 m

Outrigger Lateral Distance (Half Extension)

5.28 m

Tail Slew Radius

4,390 mm

Boom Specs

Main Boom Length

12.5—48.0 m

Main Boom Elevation Angle

-2° to 80°

Extension Boom Length (Optional)

9.0 m

Extension Boom Installation Angle

Jib Specs

Jib Length (Option 1)

10.3 m

Jib Length (Option 2)

17.5 m

Jib Installation Angle (Option 1)

0°, 15°, 30°

Jib Installation Angle (Option 2)

0°, 15°, 30°

Well-maintained, fully functional, and ready for immediate deployment

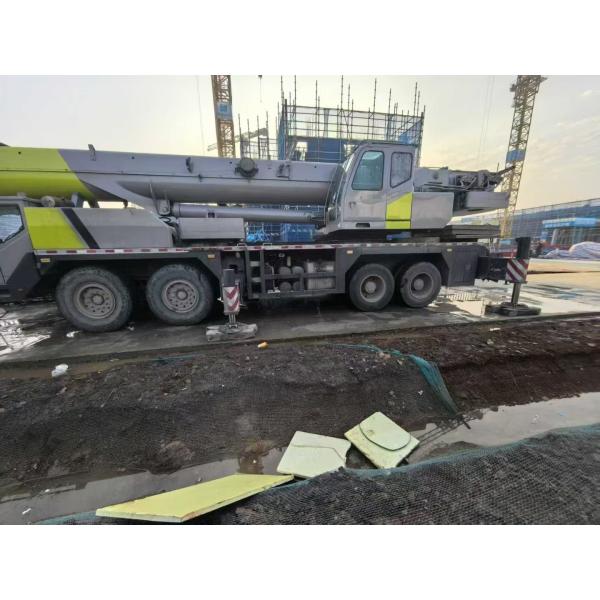

Photo Details

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment

Company Profile

2016 ZOOMLION 80 Ton Mobile Crane Hydraulic Crane Lifting Equipment

FAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.


5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
